Champion T37 Flood Light

The flood light CHAMPION T37 is a cost-effective solution, with full range of wattage and optional light distribution, T37 is available for multiple applications. Multiple light distribution for different applications even for stadium and billboard. It can also be used as street light with slip fitter mounting accessory.

  1. Modern and elegant design
  2. Up to 180LM/W
  3. From 30W to 300W full range
  4. IP67 grade protection
  5. Different beam angle for options Asymmetrical light distribution is optional

Download Technical Specifications

OPTIONS

  • 1-10V dimmable and DALI driver
  • Microwave motion sensor
  • SPD protection

CERTIFICATES

  • European market: TUV CE RoHS

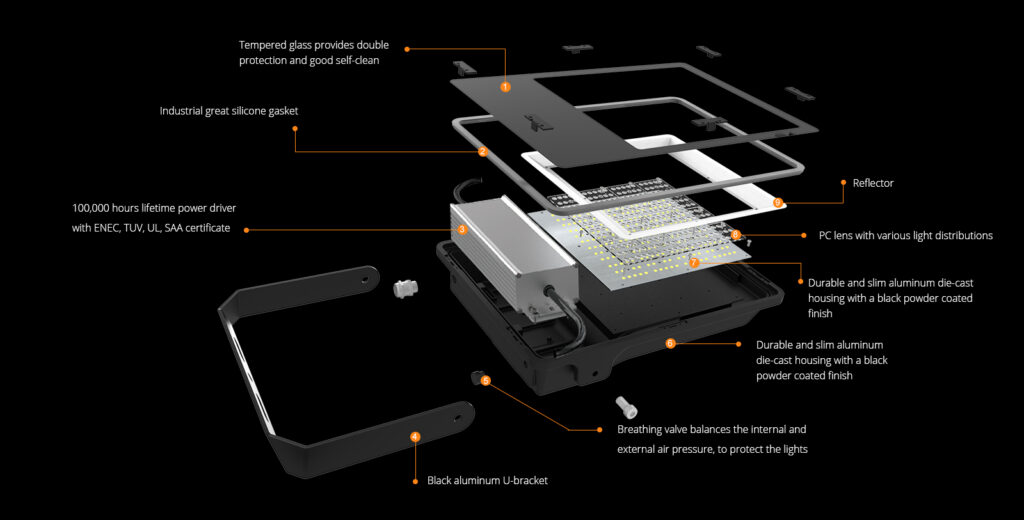

PRODUCT DETAILS

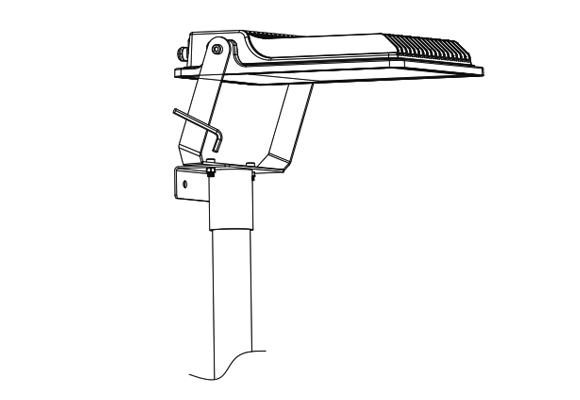

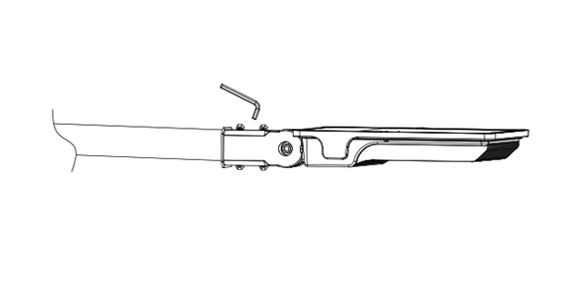

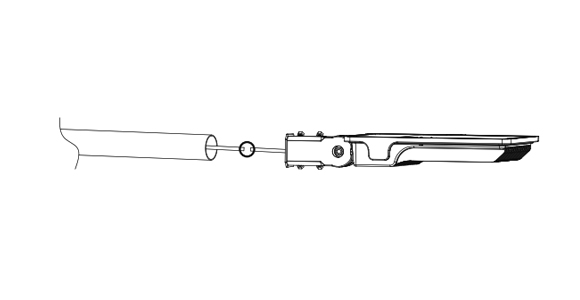

STREET LIGHT INSTALLATION INSTRUCTION

1. Connect to power supply AC 100-277V.
2. Install the hole lamp on the pole and tighten four M8 screws.

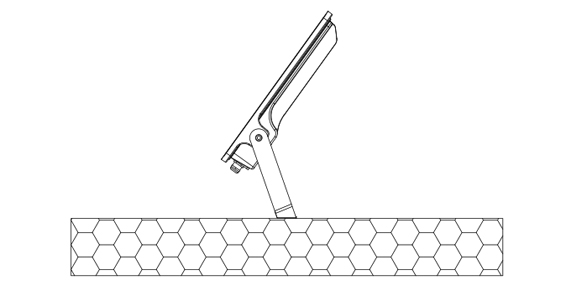

FLOOD LIGHT INSTALLATION INSTRUCTION

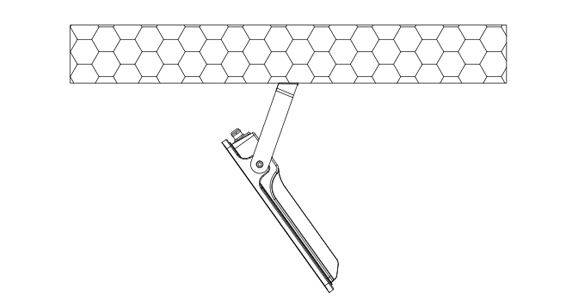

1. Ceiling mounted

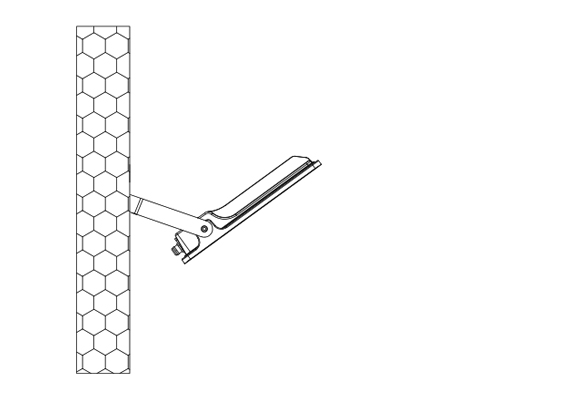

2. Wall mounted
3. Socket mounted

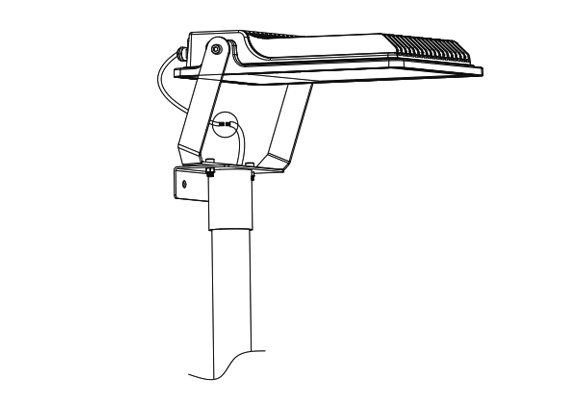

VERTICAL INSTALLATION INSTRUCTION

1. Install the hole lamp on the pole and tighten four M8 screws.
2. Connect to power supply AC 100-27.

AREA OF APPLICATION

Sports, Parking lots, Billboard illumination, Street lights, Ports and airports, Other outdoors application
Sports
Parking lots
Landscape lighting
Billboard illumination
