Easyway T63 LED Street Light

The Easyway T63 LED street light offers an affordable LED road lighting solution to the customer for both pedestrian and vehicle road applications. Its die-cast aluminum housing and high quality Tomcarline power driver ensures long lifetime and reliability. It offers 2 housing sizes and beam optics for road and street with 2 or 3 lanes. With 5W EMC 5050 led chips, it reaches 150lm/w for the system efficiency and helps the custom- er to save more energy.

  1. Very high efficiency 150lm/W
  2. Excellent thermal management ensures long system lifetime
  3. IP65 and IK10 protection grade
  4. Cost effective solution
  5. 5 years warranty

Download Technical Specifications

OPTIONS

  • 10KV surge protection
  • 1-10V dimmable driver
  • Photocell

AREA OF APPLICATION

  • Road and street

CERTIFICATES

  • European Market: CE, RoHS

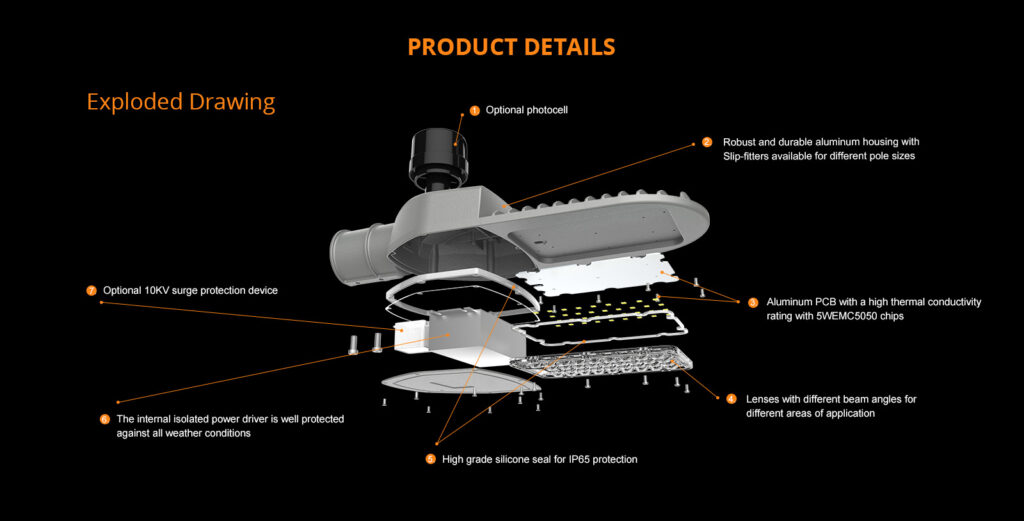

PRODUCT DETAILS

DIMENSION (MM)

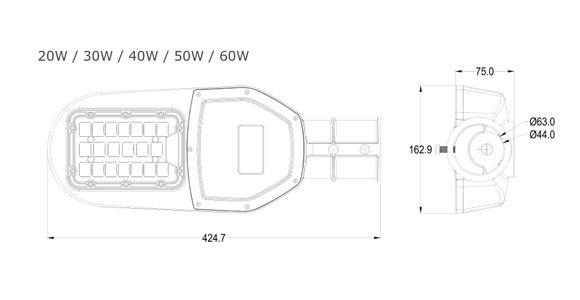

1. 20W / 30W / 40W / 50W / 60W.

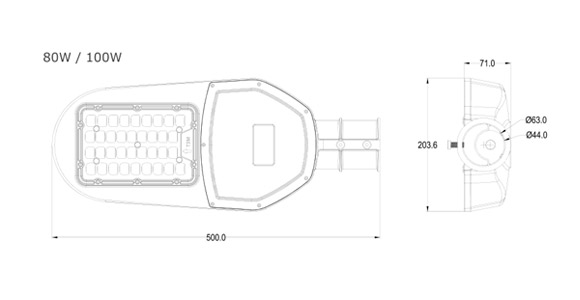

2. 80W / 100W.

INSTALLATION INSTRUCTION

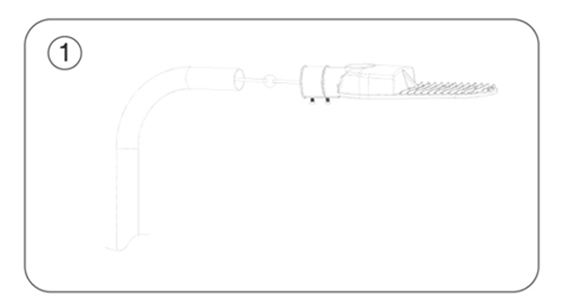

1. Connect to power supply AC 100-277V.

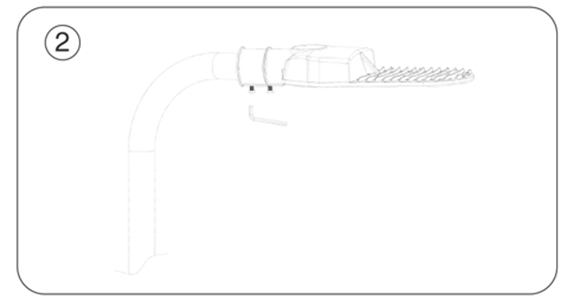

2. Install the hole lamp on the pole and tighten two M8 screws.

AREA OF APPLICATION

Road and street
Roads and streets
Parking lots
