Honor T35 Flood Light

The Honor T35 Sports & Flood light is an innovative solution which is designed exclusively for sports and multifunctional lighting applications; Honor T35 Sports & High mast light offers 150lm/w high efficient light, effective thermal management, and long lifetime. The Honor T35 range includes 400W / 500W / 650W (two LED light modules) and 750W / 1000W (three LED light modules) with various beam angle options. Both integrated version and remote version can help customer to save installation cost.

  1. As high as 150lm/w, 150,000lm maximum
  2. Easy installation and lower labor cost
  3. High level of lighting quality, flicker free
  4. Multiple light distributions including 15° narrow beam angle
  5. The angle of each module can be adjustable
  6. Each module can be replaced to minimize maintenance costs
  7. Both integrated version and remote version

Download Technical Specifications

OPTIONS

  • Various beam angle options
  • Salty Spray 1,000hrs
  • SPD protection
  • 1-10V dimmable and DALI driver

CERTIFICATES

  • CE, RoHS, UL pending, DLC pending

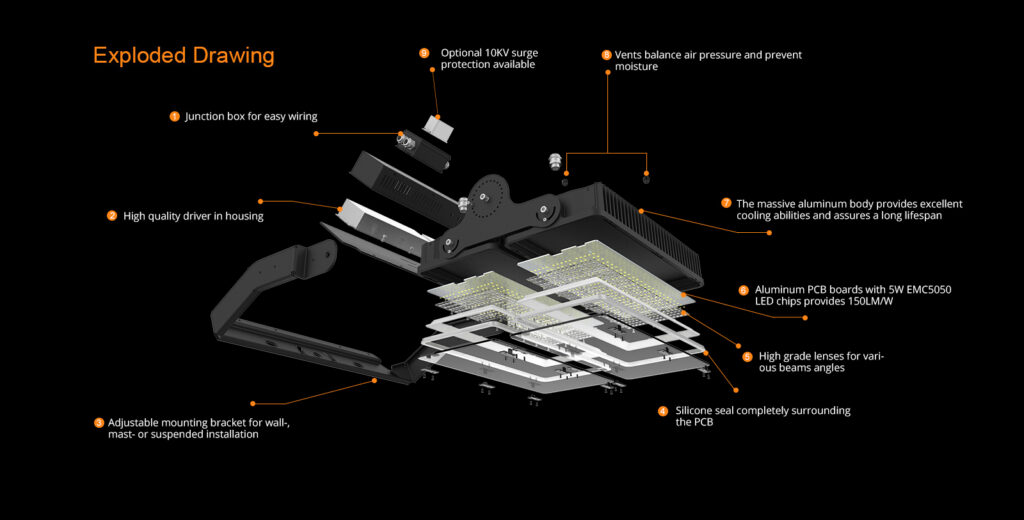

PRODUCT DETAILS

INTEGRATED VERSION INSTALLATION INSTRUCTION

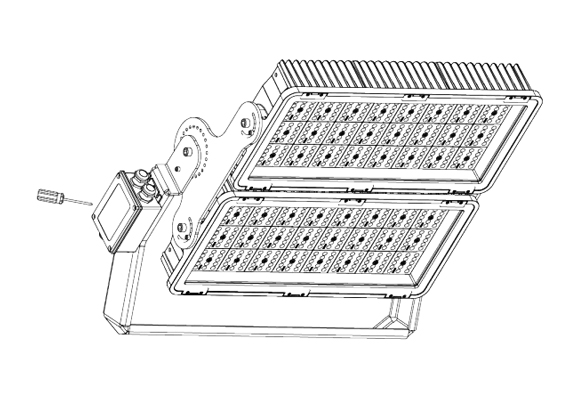

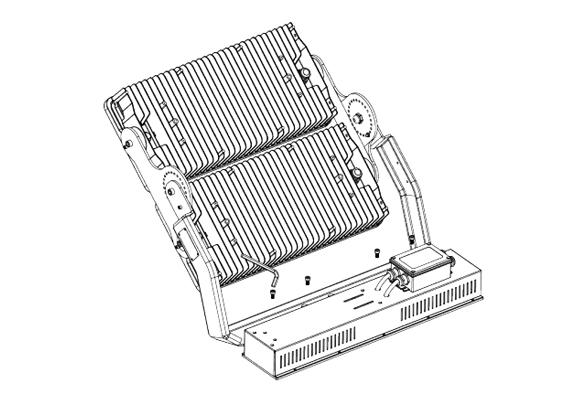

1. Fix the junction box to the mounting bracket by 4pcs 8*12MM screws.

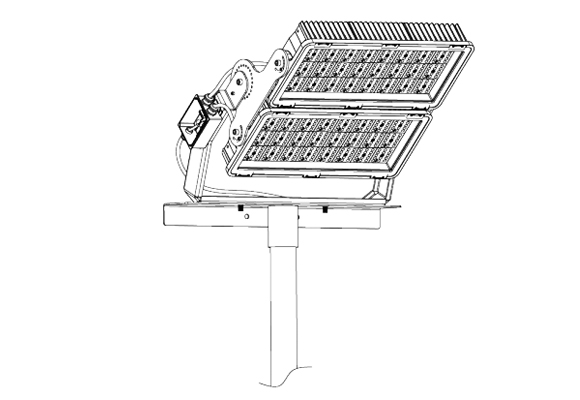

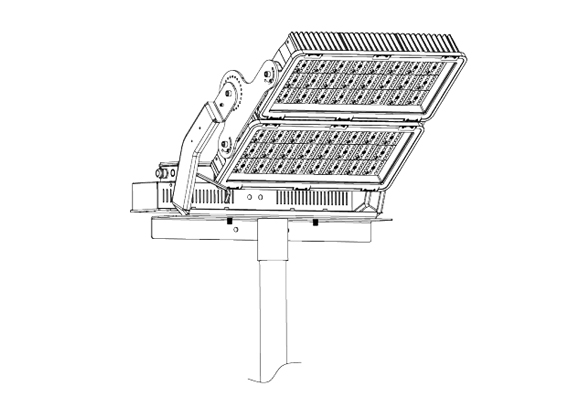

2. Install the lamp to the pole.

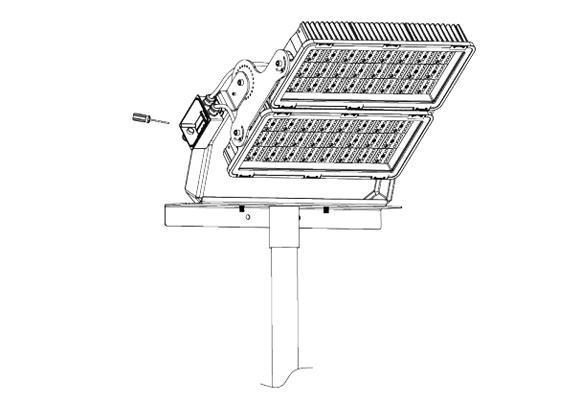

3. Open the junction box by screw driver.

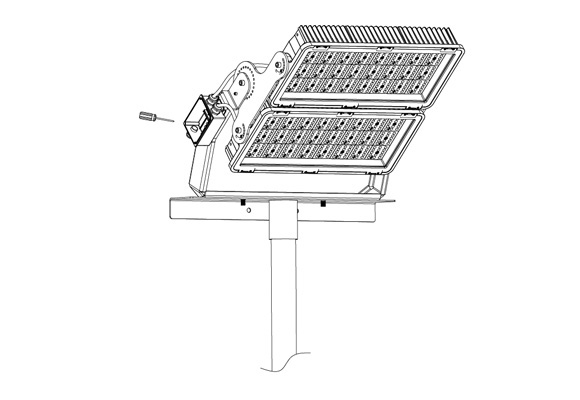

4. Connect the power line to the lamp.

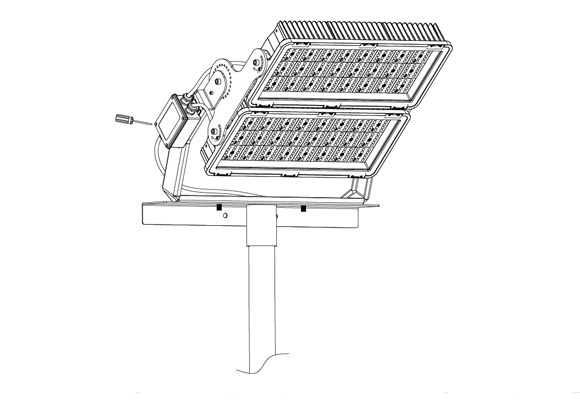

5. Lock up the junction box.

REMOTE VERSION INSTALLATION INSTRUCTION

1. Fix the junction box to the mounting bracket.
2. Install the lamp to the pole.

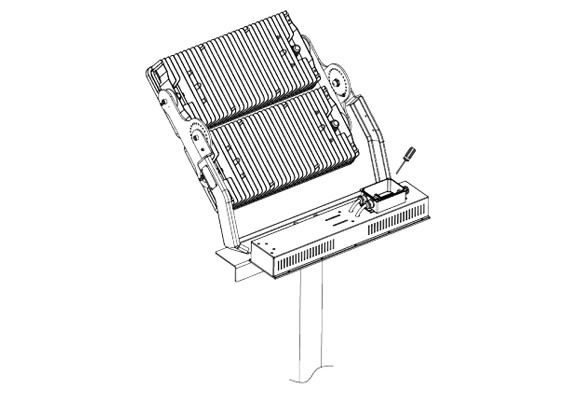

3. Open the junction box by screw driver.

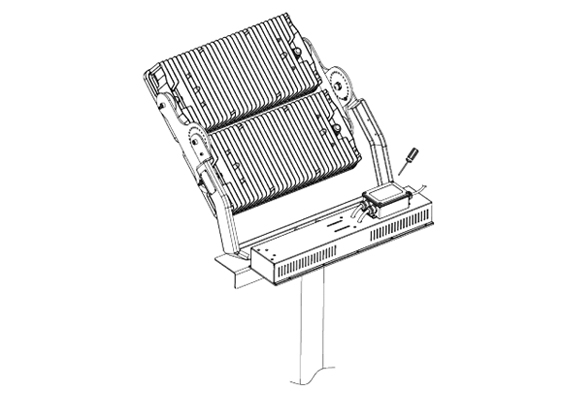

4. Connect the power line to the lamp.
5. Lock up the junction box.

AREA OF APPLICATION

Highways and parking lots;Loading areas and freight yards;Ports and airports;Sporting venues;Industrial plants & power plants
Airport
Parking lots
Ports
Stadium
