Nero T68 Street light

Modern Streetlights play a vital role when it comes to the safety and security on our streets, in parks and in urban areas. Our Nero Streetlight Series (T68) was designed to contribute to these aspects while still being affordable and without compromising on light quality or energy efficiency. During daytime the aesthetic yet unobtrusive design will perfectly blend-in while during dark hours its full long-lasting potential will unfold and illuminate where safety and security are essential. A wide wattage range from 20W to 150W, lenses for different beam angles and a suitable selection of slip-fitters for different pol sizes guaranty the right setup for most areas of application. If needed a quick maintenance flap allows fast and easy access to the driver compartment. Optional daylight and motion sensors potentially enhance power savings and reduce unwanted light pollution.

  1. Extremely energy efficient – up to 140 lm/w
  2. High Luminous flux – up to 21.000 lm
  3. Maintenance flap for quick access to the driver compartment
  4. Excellent heat dissipation and modern design
  5. Slim and compact profile for maximum wind resistance
  6. No wires are being exposed to the sun and rain
  7. Durable and long-lasting power driver (flicker-free for models above 50W)
  8. Circuit interrupter for maintenance access
  9. Adjustable installation angle
  10. IP66 for all weather conditions
  11. 5 years warranty

Download Technical Specifications

OPTIONS

  • Daylight sensor and motion sensor available
  • 3pin, 5pin, 7pin NEMA base
  • Corrosion-resistant coating for seaside application
  • Class II luminaire
  • Electrical disconnector
  • Optional 20KV Surge Protection upgrade
  • CRI 80 Ra available upon request

CERTIFICATES

  • European market: ENEC, TUV, GS, CB, CE, RoHS

  • Australian market: SAA, C-Tick, RCM

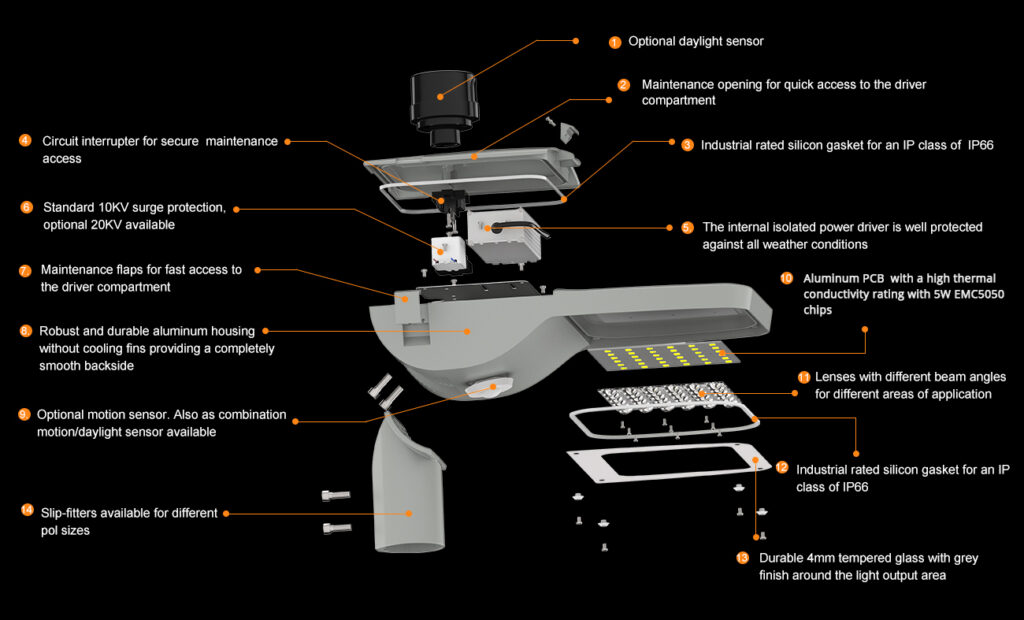

PRODUCT DETAILS

INSTALLATION INSTRUCTION

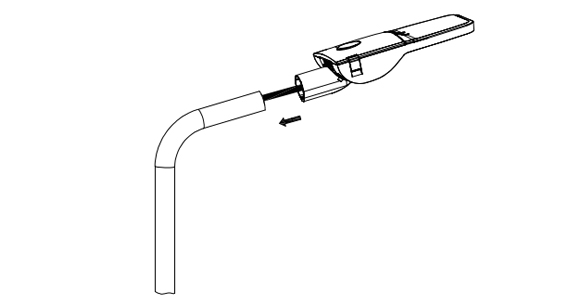

1. Mount the fixture on the pole.

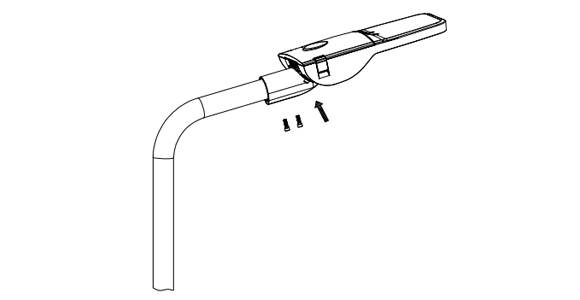

2. Secure the fixture by tightening the two screws.

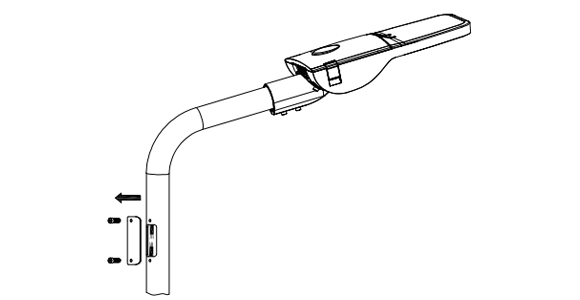

3. Open the poles maintenance opening.

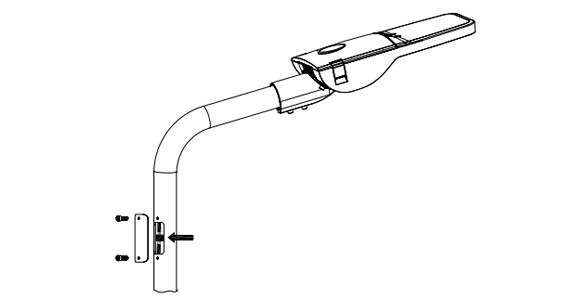

4. Connect the fixture to the power line.

VERTICAL INSTALLATION INSTRUCTION

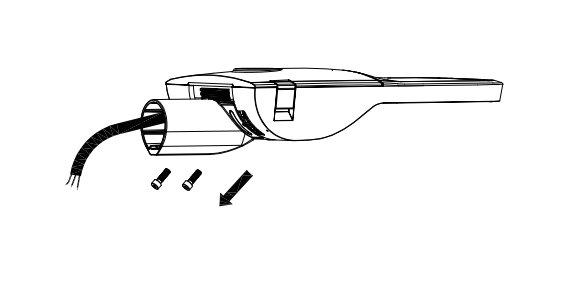

1. Remove the screws holding the slip-fitter.

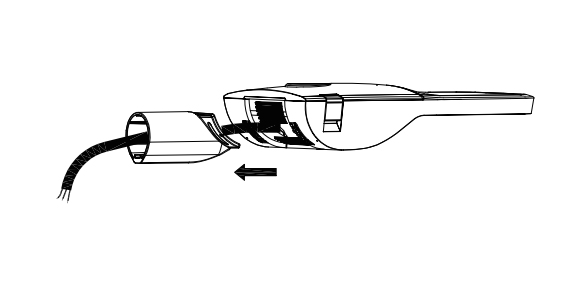

2. Remove the slip-fitter.

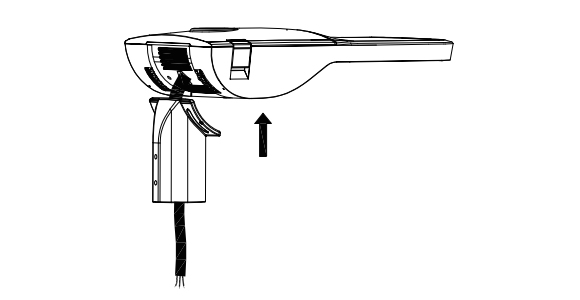

3. Turn the slip-fitter around and fit it to the fixture.

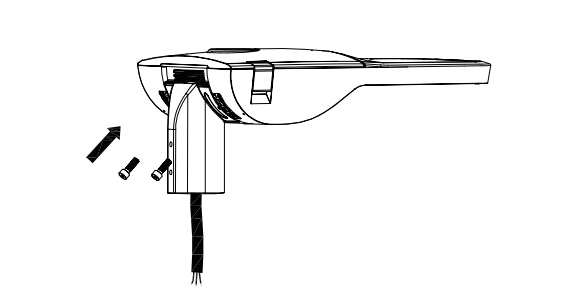

4. Screw the slip-fitter to the fixture.

AREA OF APPLICATION

Residential roads and streets;Parks and parking lots;Loading areas and sporting venues
Roads and streets
Parking lots
