Nero Pro T68B Street Light

The T31D Starline High Bay is a powerful and energy-efficient LED light fixture available from 80W to 300W. It was designed for tall halls, high warehous-es, loading areas and freight yards. Various lenses for different beam angles enable this linear high bay to be efficiently used in heights up to 30m. Its weatherproof aluminum alloy housing and the high quality polycar-bonate lenses make it dust tight as well as water and impact resistant for use in harsh environments. This extremely robust light can be flexibly configured for use in a very wide application range. suspended or surface mounted installation will provide a perfectly homogeneous light distribution.

  1. Extremely energy efficient – up to 140 lm/w.
  2. High Luminous flux – up to 33.600 lm.
  3. Excellent heat dissipation and modern design.
  4. Slim and compact profile for maximum wind resistance.
  5. Durable and long-lasting power driver (flicker-free for models above 50W).
  6. Circuit interrupter for maintenance access.
  7. Adjustable installation angle（vertically or horizontally ）.
  8. IP66 for all weather conditions.
  9. 5 years warranty.

Download Technical Specifications

OPTIONS

  • Daylight sensor and motion sensor available
  • 3pin, 5pin, 7pin NEMA base
  • Corrosion-resistant coating for seaside application
  • Class II luminaire
  • Electrical disconnector
  • Optional 10KV or 20KV Surge Protection
  • CRI 80 Ra available upon request
  • Optional slip fitters for poles: 60-42mm, 76-60mm

CERTIFICATES

  • European Market: ENEC, TUV, GS, CB, CE, RoHS

  • Australian Market: SAA, C-Tick, RCM

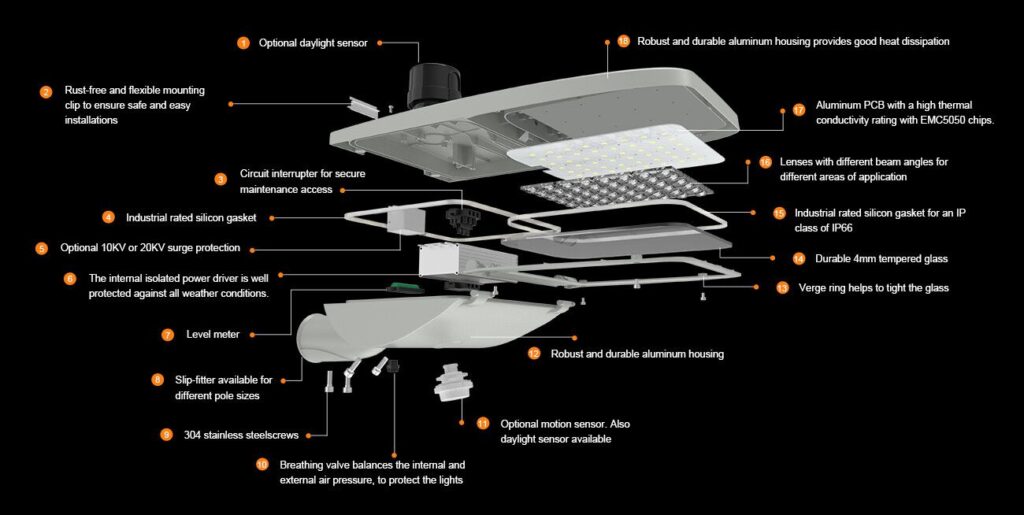

PRODUCT DETAILS

INSTALLATION INSTRUCTIONS FOR STANDALONE VERSION

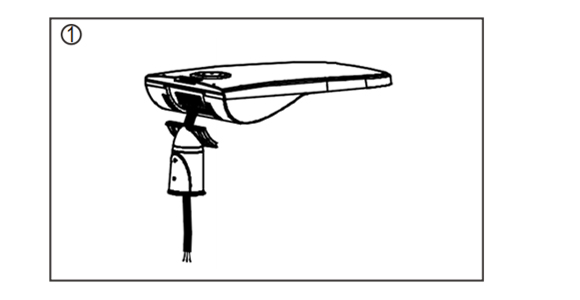

1. Install the slip-fitter vertically on the fixture .
2. Secure the slip-fitter on the fixture with two M8 hexagon screws.

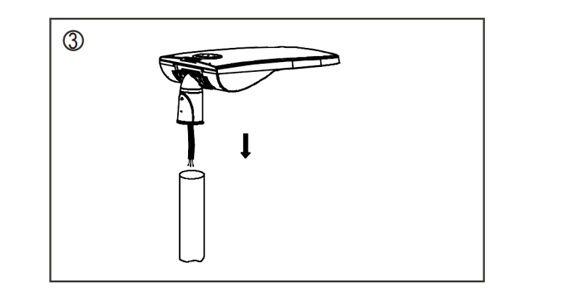

3. Mount the fixture on the pole.

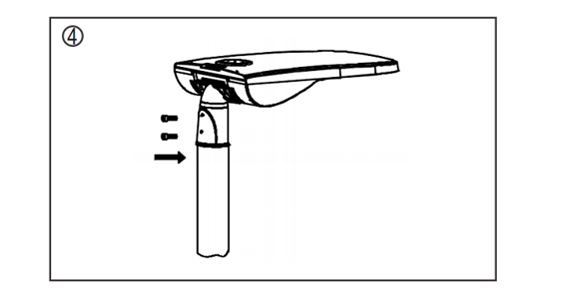

4. Secure the slip-fitter on the fixture by tightening the two screws.

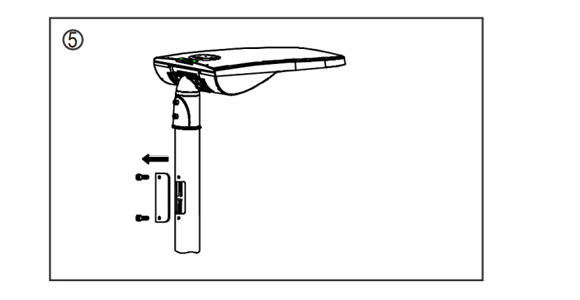

5. Open the maintenance flap of the pole .

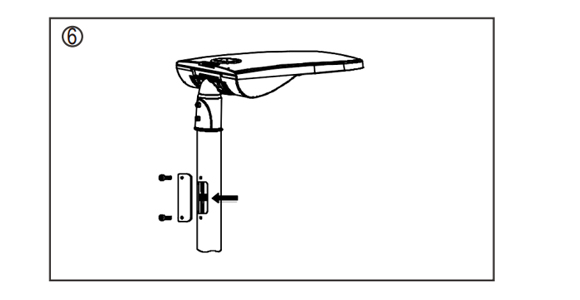

6. Connect the input wire of the fixture with the power line.

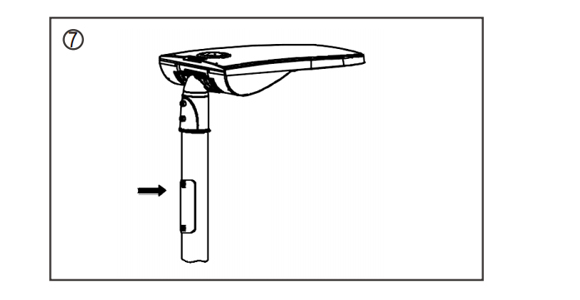

7. Closed the maintenance flap.

SURFACE MOUNTING INSTALLATION INSTRUCTIONS FOR LINKABLE USE

1. Install the slip-fitter horizontally on the fixture .

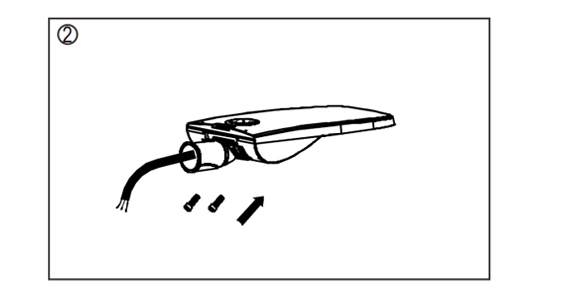

2. Secure the slip-fitter on the fixture with two M8 hexagon screws.

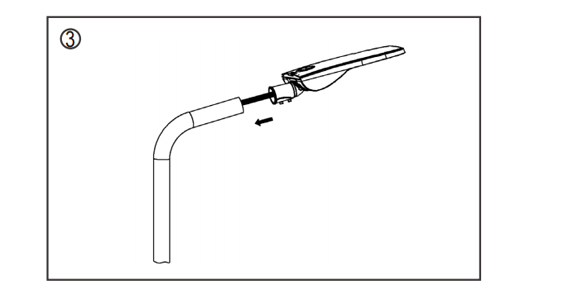

3. Mount the fixture on the pole.

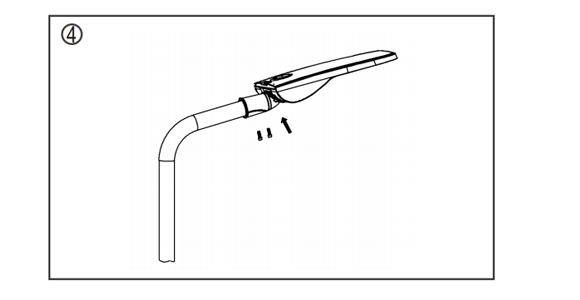

4. Secure the slip-fitter on the fixture by tightening the two screws.

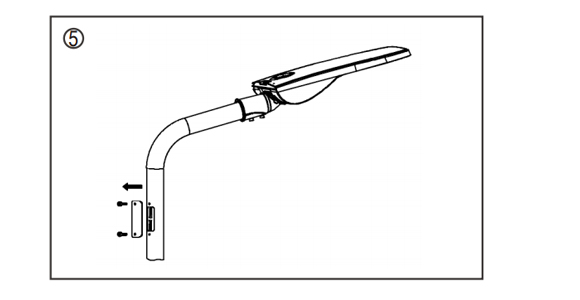

5. Open the maintenance flap of the pole .

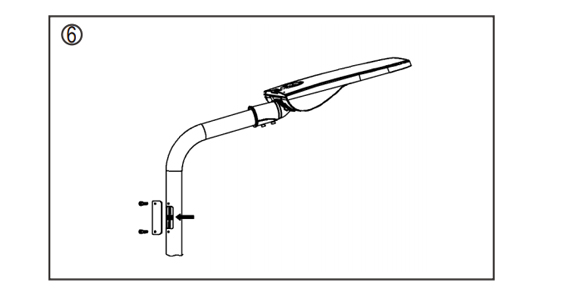

6. Connect the input wire of the fixture with the power line.

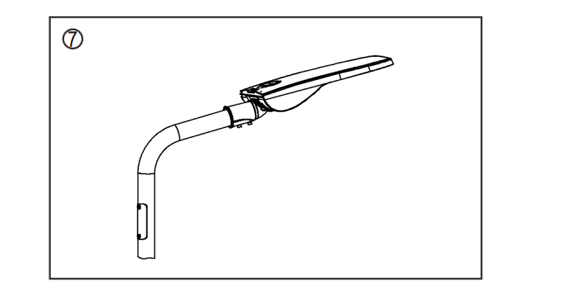

7.Closed the maintenance flap.

AREA OF APPLICATION

Residential roads and streets
Parks and parking lots
Loading areas and sporting venues
