Skyline G2 T18 LED Linear High bay

Unlike most of linear highbays in the market, the heatsink of Skyline gen2 T18 is extrusive aluminum 6063 which provides outstanding heat dissipation performance and longer lifetime for the luminaire. With Skyline gen2 T18, FYTLED continues to improve its IP protection grade up to IP54 to fit more applications. In addition, a wide variety of options – e.g. mounting possibilities, cover materials and different kinds of sensors– are available to ensure an ideal solution for your application. Skyline gen2 T18 linear highbay offers two levels of light efficiency to your options: 140l/w clear cover (130lm/w frosted cover) and 170lm/w clear cover (160lm/w frosted cover) and helps you to have less power consumption.

  1. Extrusive aluminum 6063 housing, outstanding heat dissipation performance
  2. Extremely energy efficient – up to 170 lm/w
  3. Streamlined design with uniform light
  4. Durable and flicker-free power driver
  5. 6KV surge protection safeguards luminaire
  6. IP54 for indoor usage
  7. Three installation ways: suspended cable (standard), surface mount (optional), Pendant 3/4″NPT (optional)
  8. CRI 80
  9. 5 Years warranty

Download Technical Specifications

OPTIONS

  • 1-10V dimmable and DALI driver
  • 480V high voltage driver
  • Clear and milky cover available
  • Microwave motion sensor and PIR sensor
  • Emergency power supply
  • Zigbee control

CERTIFICATES

  • UL, cUL, DLC

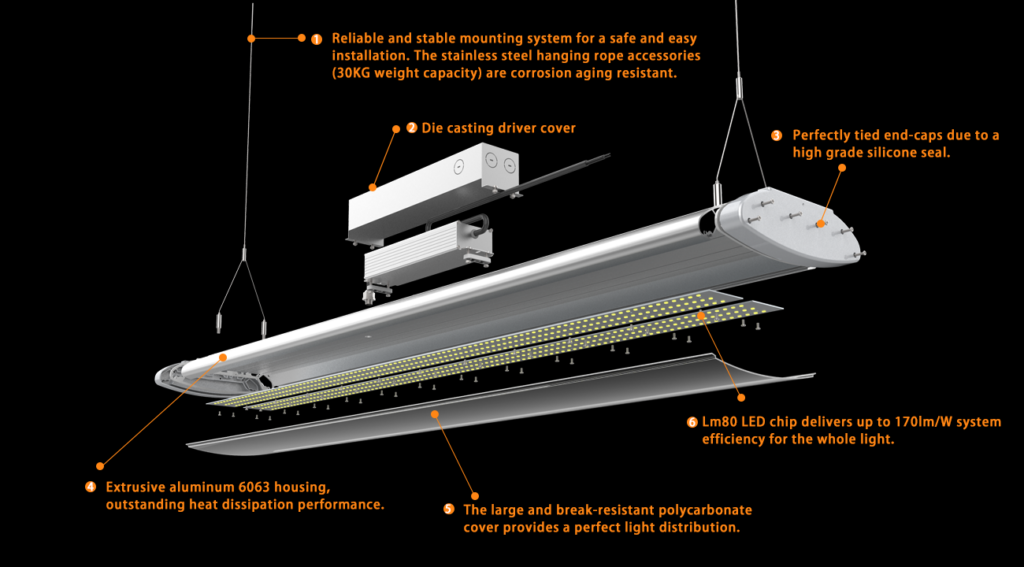

PRODUCT DETAILS

WALL MOUNTING INSTALLATION INSTRUCTION

1. Drill 2 holes of φ10mm each between 60-90mm space in the ceiling/wall

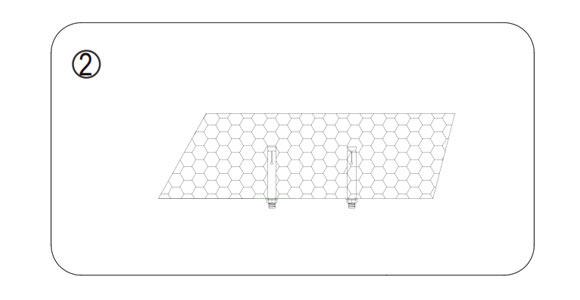

2. Fix the 2pcs M8 expansion screws on the wall

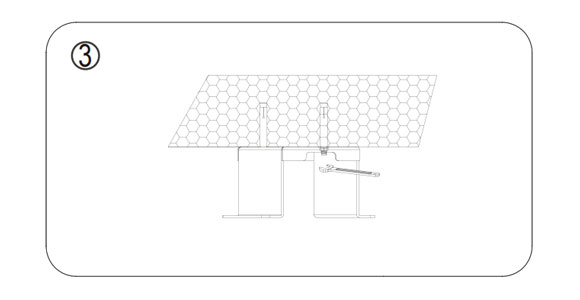

3. Secure the bracket on the wall

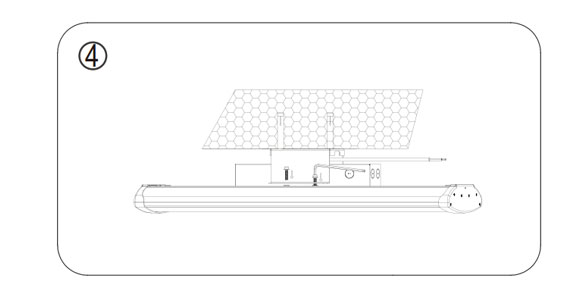

4. Fix the fixture on the bracket and tighten it with a wrench
5. Connect the power line AC100-277V

HANGING ROPE INSTALLATION INSTRUCTION

1. Drill 2 holes of φ10mm each in the ceiling / wall according to the different sizes of fixtures

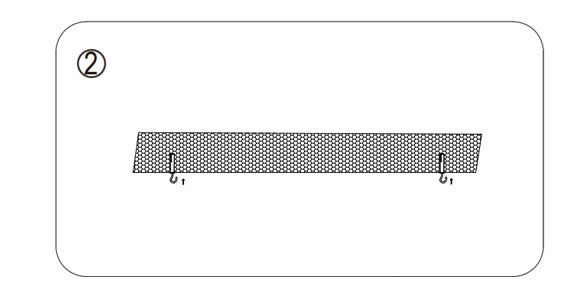

2. Fix the 2pcs M8 expansion screws on the wall
3. Install the lifting rope on the fixture
4. Hang the rope on the expansion screw with hook and adjust the rope’s length to the right place
5. Connect the power line AC100-277V

PENDANT G3/4" NPT INSTALLATION INSTRUCTION

1. Put G3/4 NPT through bracket and fix it on

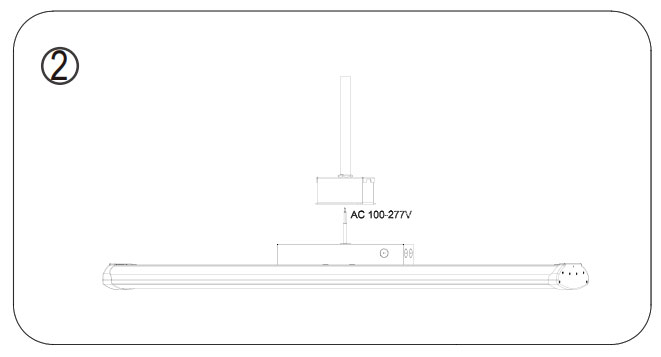

2. Connect the power line AC100-277V
3. Secure the fixed bracket onto the fixture
4. Adjust the fixture’s direction and tighten the screws on the NPT

AREA OF APPLICATION

Factories and warehouses;High rooms and halls;Exhibition & showrooms.
Warehouse
Supermarket
Factories
Sports
