T31D Starline High Bay

The T31D Starline High Bay is a powerful and energy-efficient LED light fixture available from 80W to 300W. It was designed for tall halls, high warehous-es, loading areas and freight yards. Various lenses for different beam angles enable this linear high bay to be efficiently used in heights up to 30m. Its weatherproof aluminum alloy housing and the high quality polycar-bonate lenses make it dust tight as well as water and impact resistant for use in harsh environments. This extremely robust light can be flexibly configured for use in a very wide application range. suspended or surface mounted installation will provide a perfectly homogeneous light distribution.

  1. Highly energy efficient – up to 160 lm/w
  2. High Luminous flux – up to 42000 lm
  3. IP65 and IK10 protection
  4. Installation heights up to 30 meters!
  5. 5 Years warranty

Download Technical Specifications

OPTIONS

  • Various beam angle options: 30°,60 °,90 °,30 °x70°,40°x130°Optional
  • Optional Mean well driver available
  • 1-10V dimmable and DALI available
  • Microwave motion and PIR sensor available
  • Optional emergency power supply
  • Zigbee is available

CERTIFICATES

  • CE,RoHS

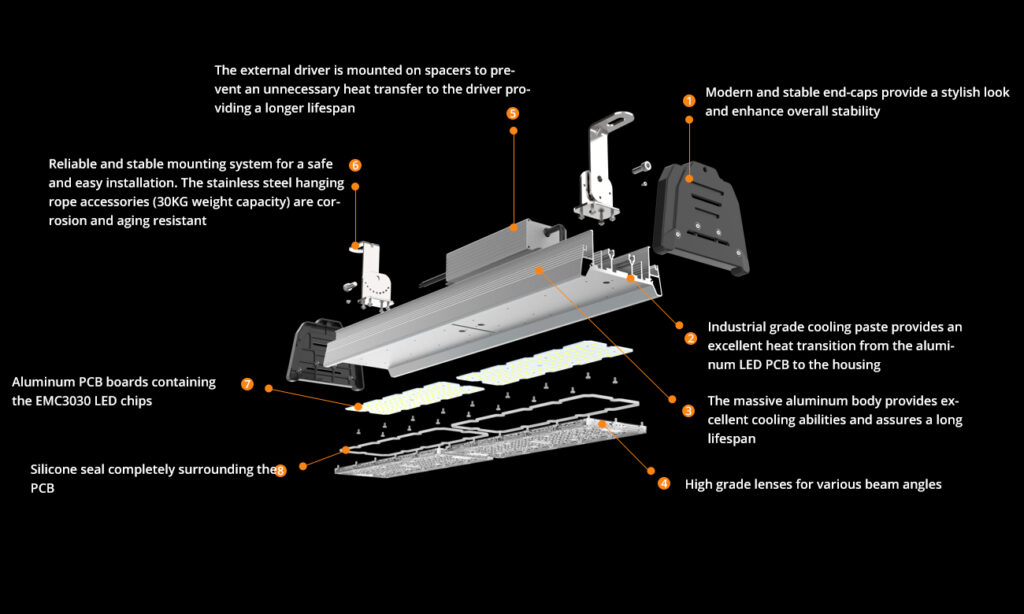

PRODUCT DETAILS

INSTALLATION INSTRUCTIONS FOR SUSPENDED USE

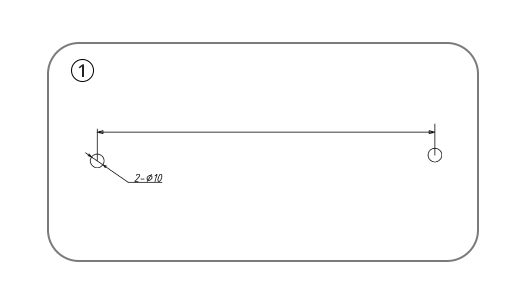

1.Adjust the spacing between the holes according to your installation situation

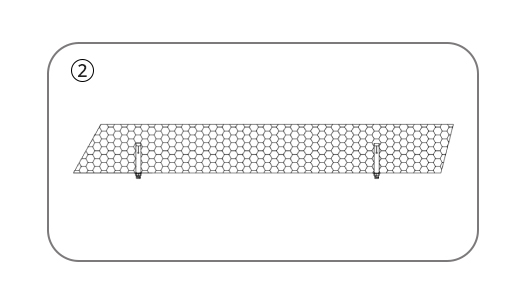

2. Fix the expansions screws in the holes you prepared

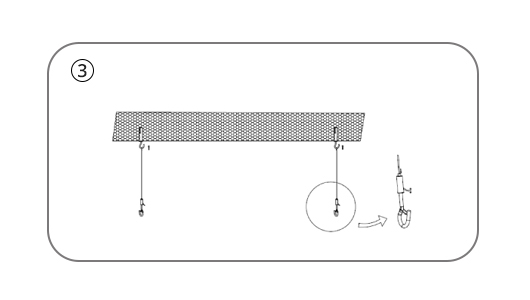

3. Adjusting the length of ropes

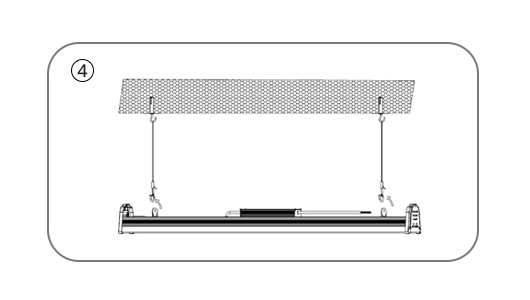

4. Connect the fixture to the rope and make sure the safety
5. Connect the power

INSTALLATION INSTRUCTIONS FOR SURFACE MOUNTING

1. Adjust the spacing between the holes according to your installation situation

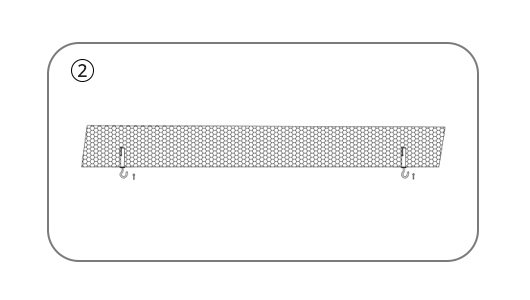

2. Fix the bolds in the holes you prepared

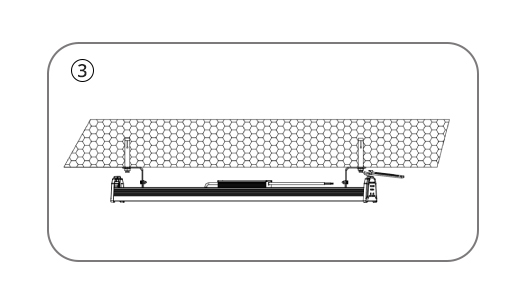

3. Screw the fixture to the ceiling

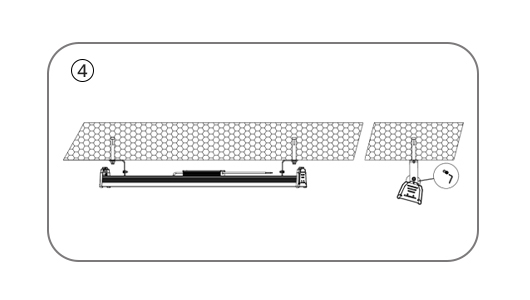

4. Adjusting it to the suitable beam angle, and then tighten the screw
5. Connect the power

AREA OF APPLICATION

Factories and warehouses;High rooms and halls;Exhibition & showrooms.
Warehouse
Supermarket
Factories
Sports
