Winner T35B LED Sports Light

The Winner Sports & Flood Light is ideal for sports field lighting, back yard sports courts, parks, signs, parking lot lighting, and other general applications where sports lighting may come into use. It has wattage ranging from 300 watt to 500 watts. With different beam spreads available, we can adjust your LED sports light fixture output to eliminate dark sports on your sports field.

  1. Heavy-Duty, lightweight and durable die-cast design
  2. Compact design with no expose electronics or wiring
  3. As high as 150lm/W system light efficiency
  4. High level of lighting quality, flicker free

Download Technical Specifications

OPTIONS

  • CRI>80
  • 480V high voltage driver
  • SPD protection
  • Laser aiming device

CERTIFICATES

  • DLC,UL,CE,ROHS

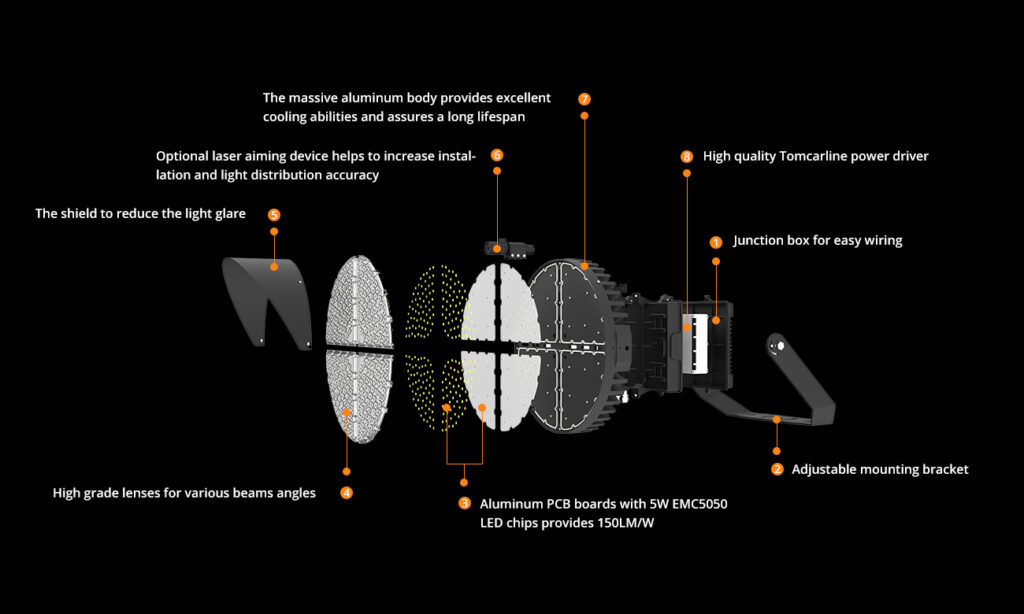

PRODUCT DETAILS

INSTALLATION

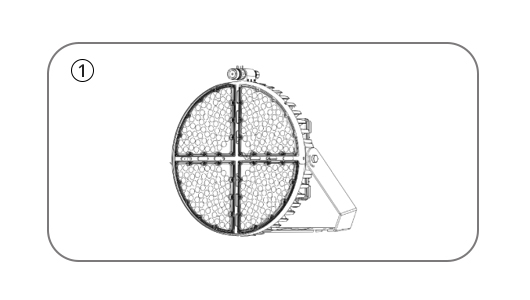

1.Please take out the fixture from the package.

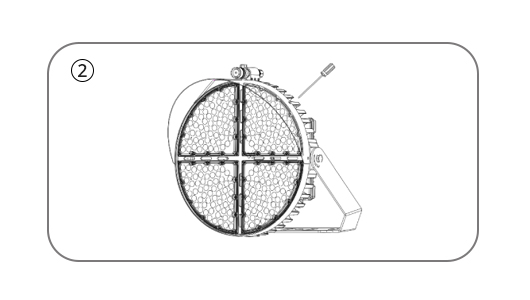

2.Please use 5pcs M4*8 screws to install the shading board on the fixture.

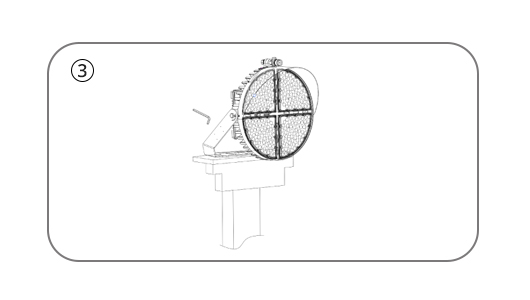

3.Please install the fixture onto the pole, fasten the screws.

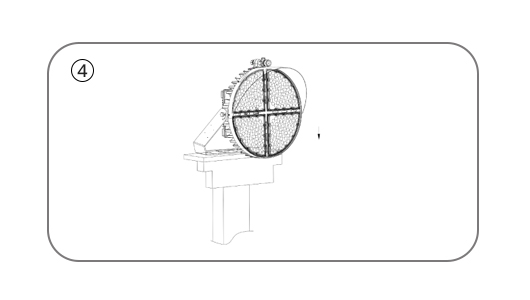

4.Please loosen the screws on the both sides of fixture, adjust the beam angle of fixture. (Please do not loosen the screws totally)

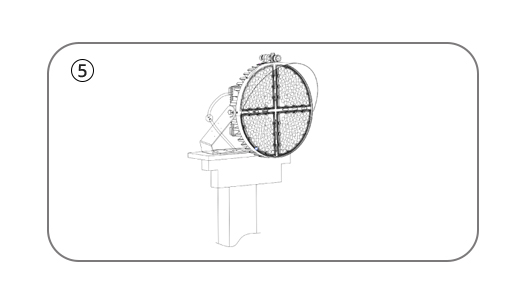

5.Please connect the fixture with AC100-277V electricity.

AREA OF APPLICATION

Sports & Other outdoor lighting
Sports
Parking lots
Roads and streets
